PIO-DA16U/S
ICP DAS
SKU: 05640400

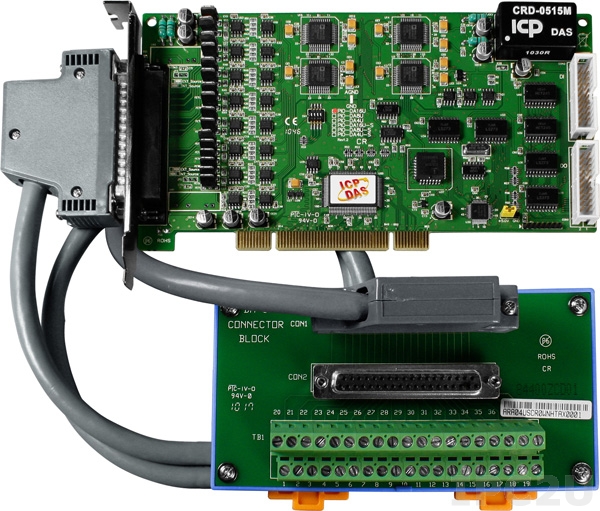

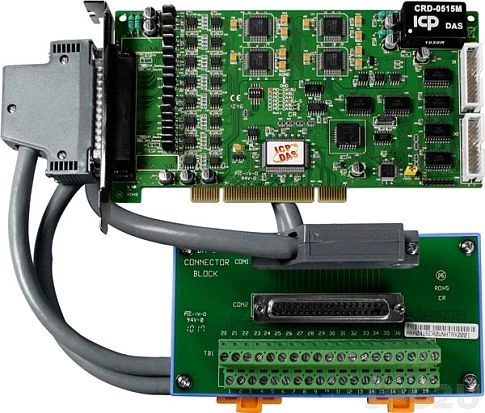

Universal PCI 16 DAC, 16DI, 16DO Board, Cable Socket CA-4002x1, DN-37
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Analog Output
Channels of analog input
16
Current range
0...20 mA
Voltage range
+/-10 V
Digital Input
Total channels of digital input
16
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
3
Counter capacity
16 Bit
Max frequency
4 kHz
Digital Output
Total channels of digital output
16
Output voltage
0~5 V
Max. load current
2.4 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-3710
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.7 kg
