PIO-D96U
ICP DAS
SKU: 05483800

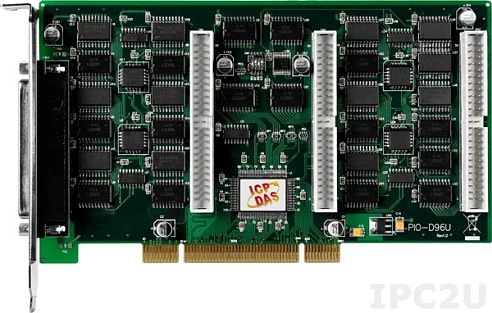

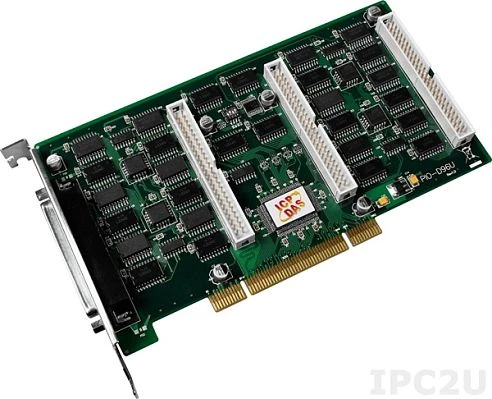

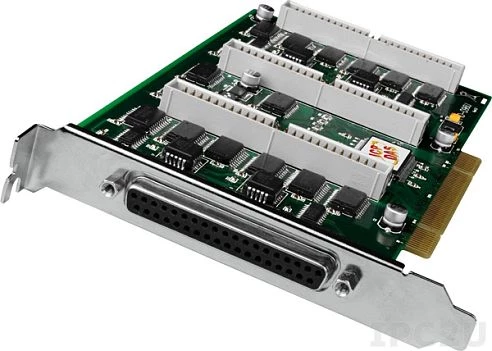

Universal PCI 96 Bit OPTO-22 Compatible Digital I/O Board, High DO Driving (Output Capability)
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input-Output
Channels of DIO
96
Digital Input
Total channels of digital input
96
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
96
Output voltage
0~5 V
Max. load current
64 mA
Connectors
Internal Ports
2x50-pin box header, 50-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
