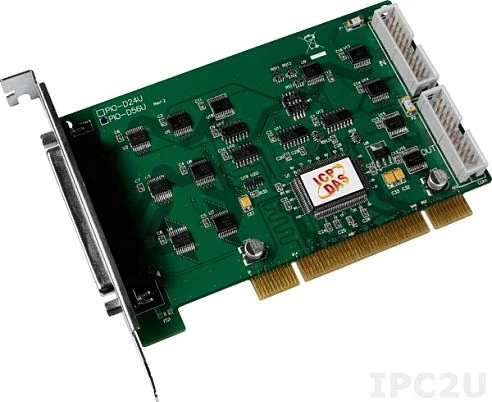

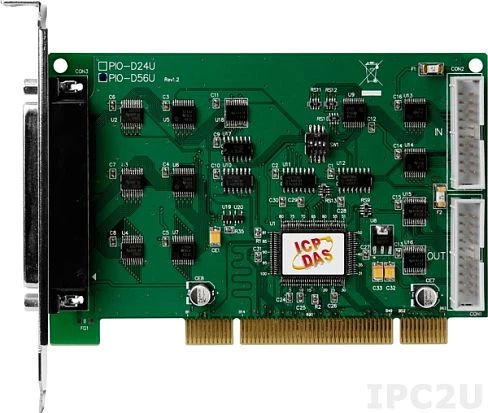

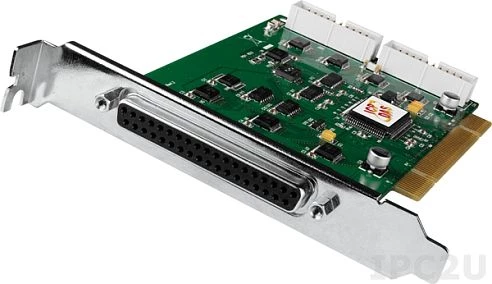

PIO-D56U
ICP DAS
SKU: 05392700
Universal PCI Digital I/O Card (16DI, 16DO, 24DIO TTL)
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input-Output
Channels of DIO
24
Digital Input
Total channels of digital input
16
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
16
Output voltage
0~5 V
Max. load current
64 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.32 kg
