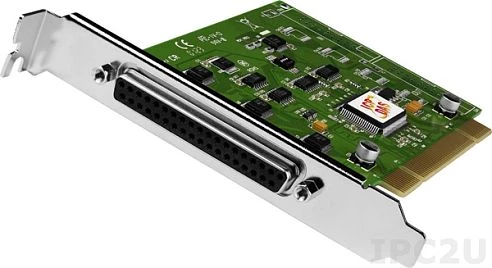

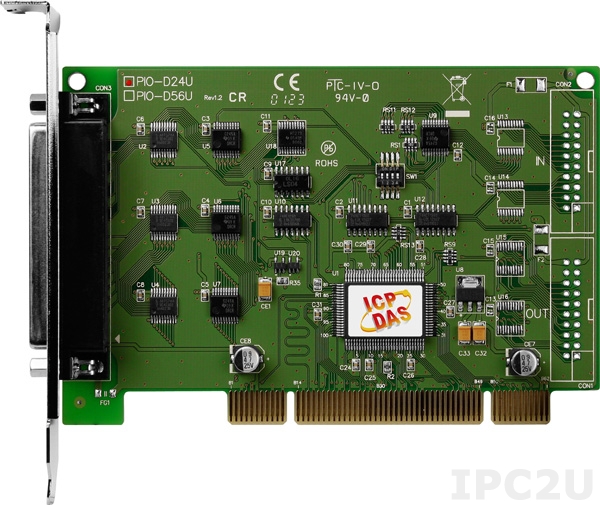

PIO-D24U
ICP DAS
SKU: 05392600
Universal PCI 24 Bit OPTO-22 Compatible Digital I/O Board
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input-Output
Channels of DIO
24
Digital Input
Total channels of digital input
24
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
24
Output voltage
0~5 V
Max. load current
64 mA
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
