PIO-D168U
ICP DAS
SKU: 05717700

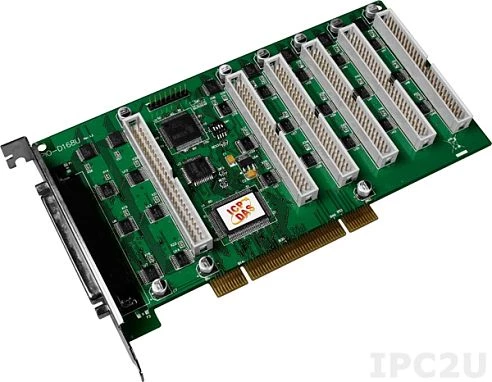

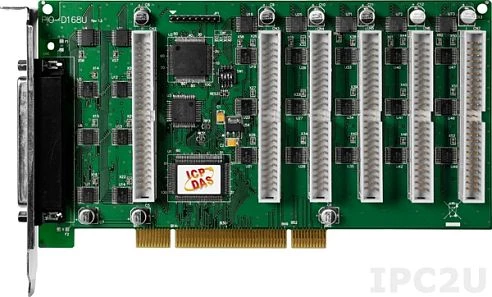

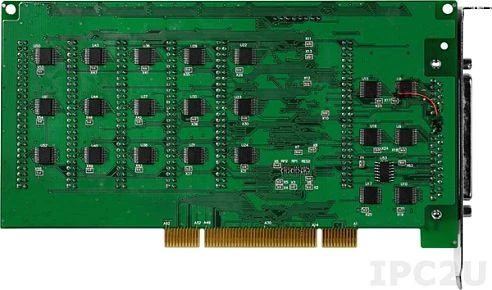

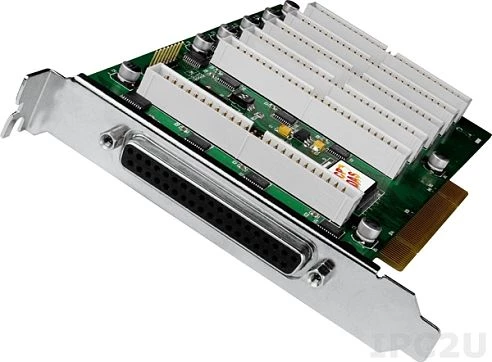

Universal PCI, 168-channel OPTO-22 DIO Board
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Digital Input-Output
Channels of DIO
168
Digital Input
Total channels of digital input
168
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
168
Output voltage
0~5 V
Max. load current
64 mA
Connectors
Internal Ports
6x50-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
1.31 kg
