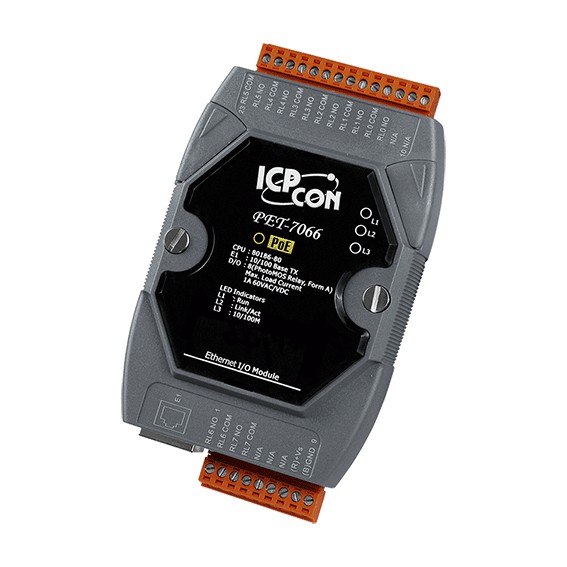

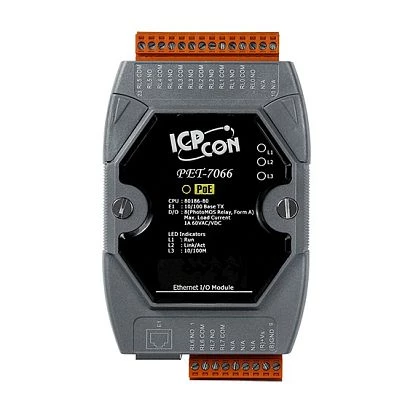

PET-7066

PET-7066

ICP DAS
SKU: 07087100
8-channel Photo-Mos Relay Output Module, PoE
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output
8
Type
PhotoMos relay
Relay (Form A)
8
Contact rating of relay (Form A)
1A@60V DC
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
35 mm
Depth
123 mm
Height
72 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
