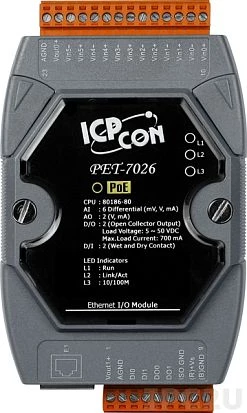

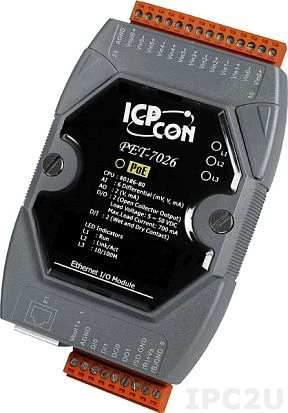

PET-7026

PET-7026

ICP DAS
SKU: 05509000
6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input And 2-channel Digital Output Module, PoE support
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Voltage range
+/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
6
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
2
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 32 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
