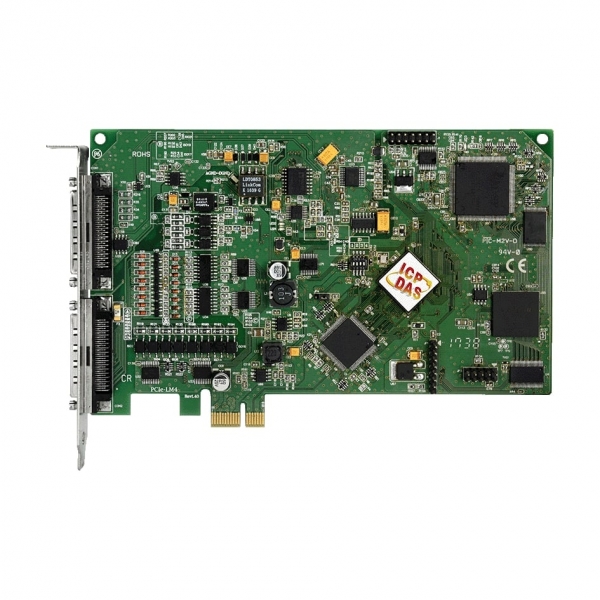

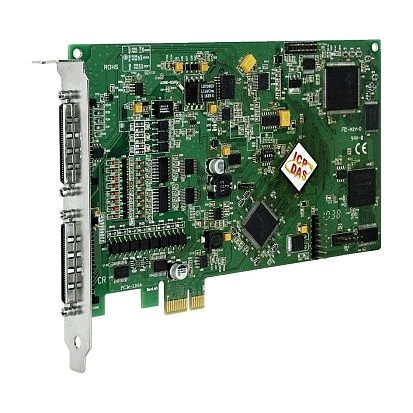

PCIe-LM4
ICP DAS
SKU: 09038000
PCI Express, 24-bit Precision Load Cell Input Motor Board (RoHS)
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Analog Input
Total channels of analog input
4
Differential channels
4
Number of Bits
24 Bit
Sampling rate
15000 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
2
Voltage range
+/-5 V, +/-10 V
Digital Input
Total channels of digital input
16
Isolation of Digital Input
2500 V
Type
Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Number of channels
2
Counter capacity
32 Bit
Max frequency
12 kHz
Signal Type
CW/CCW, Pulse/Dir, AB Phase
Digital Output
Total channels of digital output
16
Type
Open collector
Signal Type
CW/CCW, Pulse/Dir
Sink/Source
Sink
Output voltage
0~30 V
Max. load current
100 mA
Channels
2
Output frequency range
0~4 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.24 kg
Gross Weight
0.24 kg
