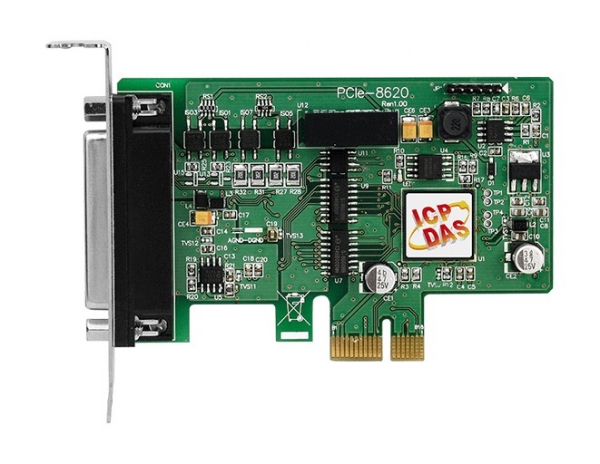

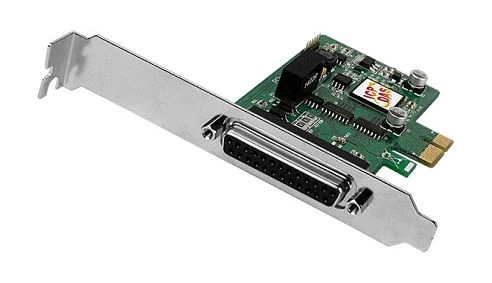

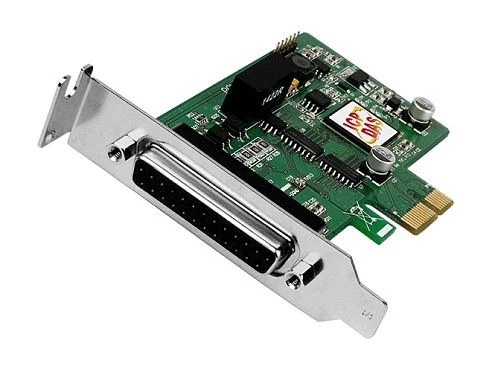

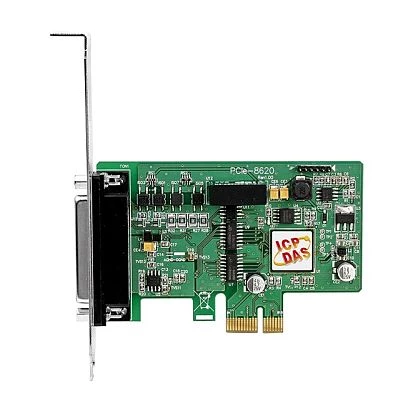

PCIe-8620
ICP DAS
SKU: 06840800
PCI Express, 200 kS/s, 16-bit, 8-channel Simultaneously Sampled Analog Input board and 4-channel Isolated DIO (RoHS) Includes one CA-PC25M D-Sub Connector and One Low-profile Bracket
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Analog Input
Total channels of analog input
8
Single-Ended channels
8
Number of Bits
16 Bit
Sampling rate
200000 Hz
Voltage range
+/-5 V, +/-10 V
Digital Input
Total channels of digital input
4
Isolation of Digital Input
2500 V
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Max. load current
6 mA
Connectors
Connectors
DB25 Female
Software
Operating System Compatibility
Windows Server 2003, Windows Server 2008, Windows XP, Windows 7, Windows 8, Windows Vista, Windows 10
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, MATLAB, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
