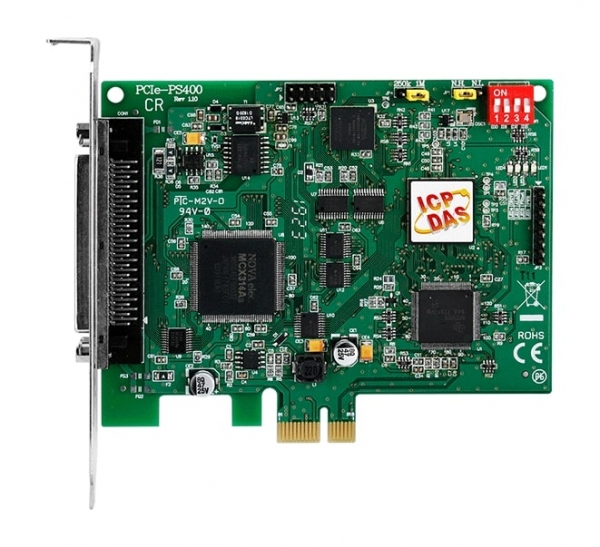

PCIe-PS400

ICP DAS
SKU: 09002100
PCIe 4 Axes Stepping/Servo Motor Control Card
Price on request
Available
Available

System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
4
Counter capacity
32 Bit
Max frequency
4 kHz
Signal Type
A/B, Up/Down
Digital Output
Signal Type
CW/CCW, Pulse/Dir
Channels
4
Output frequency range
0~4 MHz
Connectors
Connectors
68-pin SCSI-II
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 10
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
-20..75 °C
Dimensions
Gross Weight
0.5 kg
