PCI-P8R8U
ICP DAS
SKU: 06821500

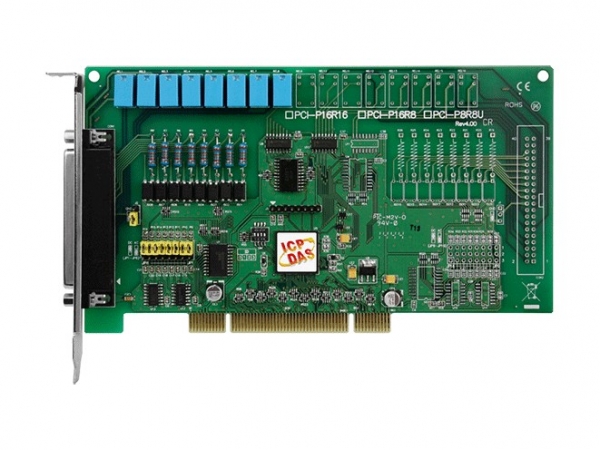

Universal PCI Isolated 8DI, 8 Relay Board, Cable Socket CA-4002x1
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
8
Isolation of Digital Input
5000 V
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
4
Contact rating of relay (Form C)
0.5A@120V AC, 1A@30V DC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.18 kg
Gross Weight
0.29 kg
