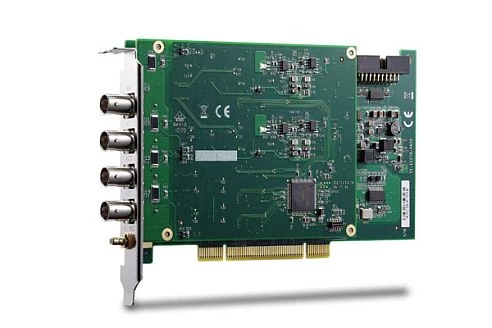

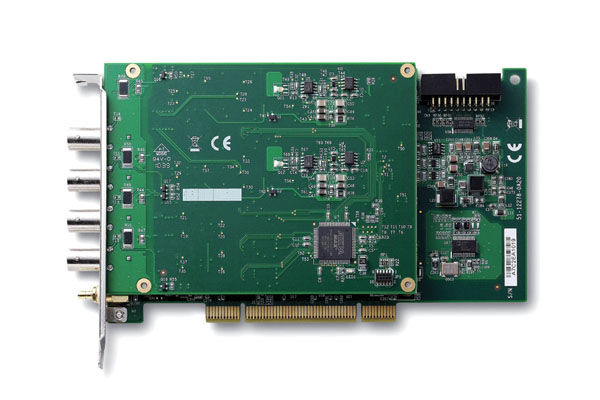

PCI-9527L

ADLink
SKU: 09382800
2-CH 24-Bit 432kS/s High Resolution Dynamic Signal Acquisition & Generation for PCI bus
Price on request
Available
Available

System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
2
Differential channels
2
Number of Bits
24 Bit
Sampling rate
432 Hz
Voltage range
+/-1 V, +/-10 V, +/-40 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V, +/-1 V
Connectors
Connectors
Pin Header
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.53 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
2
Differential channels
2
Number of Bits
24 Bit
Sampling rate
432 Hz
Voltage range
+/-1 V, +/-10 V, +/-40 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V, +/-1 V
Connectors
Connectors
Pin Header
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.53 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
2
Differential channels
2
Number of Bits
24 Bit
Sampling rate
432 Hz
Voltage range
+/-1 V, +/-10 V, +/-40 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V, +/-1 V
Connectors
Connectors
Pin Header
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.53 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
2
Differential channels
2
Number of Bits
24 Bit
Sampling rate
432 Hz
Voltage range
+/-1 V, +/-10 V, +/-40 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V, +/-1 V
Connectors
Connectors
Pin Header
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.53 kg

Documentation
Datasheet PCI-9527(L) User Manual PCI-9527(L)
Documentation
Datasheet PCI-9527(L) User Manual PCI-9527(L)
Documentation
Datasheet PCI-9527(L) User Manual PCI-9527(L)
Documentation
Datasheet PCI-9527(L) User Manual PCI-9527(L)
