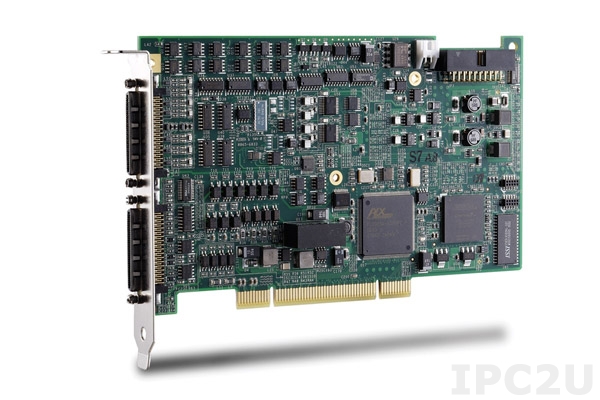

PCI-9524
ADLink
SKU: 05028300
PCI 4-Ch 24-bit precision load cell input Card
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
4
Single-Ended channels
4
Number of Bits
24 Bit
Sampling rate
30 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
8
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0.8 V
Level of Logic "1"
5~24 V
Number of channels
3
Counter capacity
24 Bit
Max frequency
1 kHz
Signal Type
CW/CCW, Pulse/Dir
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Max. load current
300 mA
Channels
3
Output frequency range
0~1 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.8 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
4
Single-Ended channels
4
Number of Bits
24 Bit
Sampling rate
30 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
8
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0.8 V
Level of Logic "1"
5~24 V
Number of channels
3
Counter capacity
24 Bit
Max frequency
1 kHz
Signal Type
CW/CCW, Pulse/Dir
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Max. load current
300 mA
Channels
3
Output frequency range
0~1 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.8 kg
