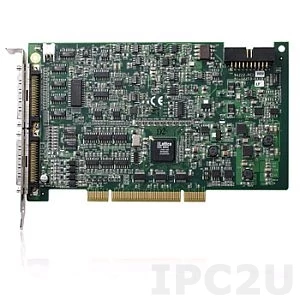

PCI-9222
ADLink
SKU: 05711100
16-CH 16-Bit 250/500 KS/s Multi-Function DAQ Cards with Encoder Input
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
250 Hz
Voltage range
+/-500 mV, +/-1 V, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/-2 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Number of channels
4
Counter capacity
32 Bit
Max frequency
80 kHz
Signal Type
A/B, CW/CCW, Frequency
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.3~3.3 V
Channels
4
Output frequency range
0~5 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
250 Hz
Voltage range
+/-500 mV, +/-1 V, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/-2 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Number of channels
4
Counter capacity
32 Bit
Max frequency
80 kHz
Signal Type
A/B, CW/CCW, Frequency
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.3~3.3 V
Channels
4
Output frequency range
0~5 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
250 Hz
Voltage range
+/-500 mV, +/-1 V, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/-2 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Number of channels
4
Counter capacity
32 Bit
Max frequency
80 kHz
Signal Type
A/B, CW/CCW, Frequency
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.3~3.3 V
Channels
4
Output frequency range
0~5 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
250 Hz
Voltage range
+/-500 mV, +/-1 V, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/-2 V
Analog Output
Channels of analog input
2
Voltage range
+/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Number of channels
4
Counter capacity
32 Bit
Max frequency
80 kHz
Signal Type
A/B, CW/CCW, Frequency
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
3.3~3.3 V
Channels
4
Output frequency range
0~5 MHz
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
