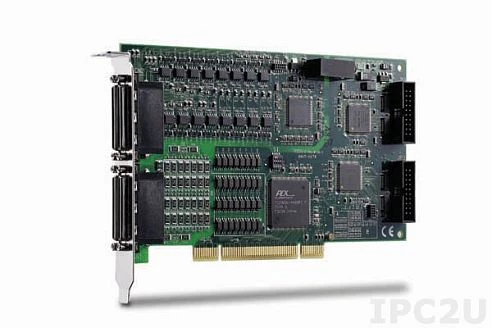

PCI-7444

PCI-7444

SKU: 05462800

PCI Isolated 128DO Board

Price on request

System Architecture

System Bus

Universal PCI

Digital Output

Total channels of digital output

128

Type

Open collector

Sink/Source

Sink

Output voltage

5~40 V

Max. load current

250 mA

Connectors

Connectors

68-pin Dual VHDCI female

Software

Operating System Compatibility

Windows XP, Windows 7, Linux OS

Development Software

LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench

Operating Conditions

Operating Temperature

0..55 °C

Dimensions

Gross Weight

0.5 kg
