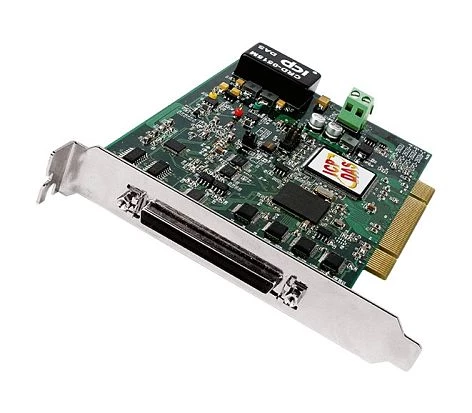

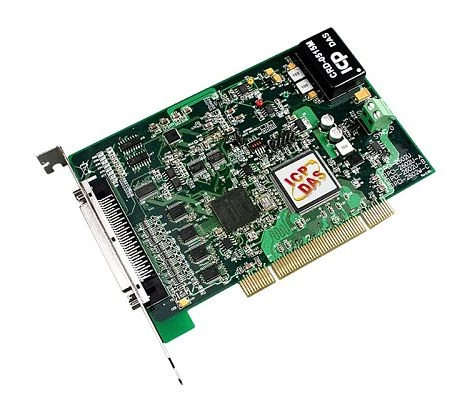

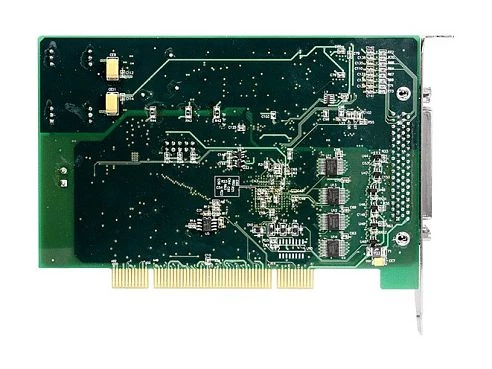

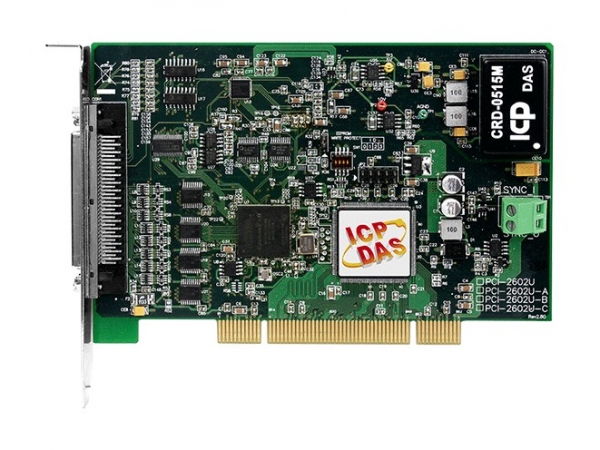

PCI-2602U
ICP DAS
SKU: 06581300
Multifunction Universal PCI Adapter, 1MS/s 16SE/8D AI, FIFO, 2 AO, 32 DIO, 2-channel 16-bit Voltage Output
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
1000000 Hz
Voltage range
+/-10.24_v, +/-5.12_v, +/-2.56 мV
Analog Output
Channels of analog input
2
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Digital Input-Output
Channels of DIO
32
Digital Input
Total channels of digital input
32
Level of Logic "0"
0~0.4 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
32
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Connectors
68-pin SCSI-II
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.21 kg
Gross Weight
0.53 kg
