PCI-1202HU/S
ICP DAS
SKU: 05255100

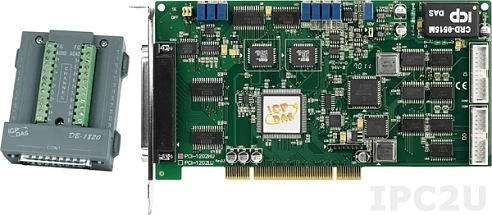

Multifunction PCI Adapter, 32SE/16D ADC, FIFO, 2 DAC, 16DI, 16DO, Timer, Cable Socket CA-4002x1, DB-1825 daughter board
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
32
Single-Ended channels
32
Differential channels
16
Number of Bits
12 Bit
Sampling rate
44000 Hz
Voltage range
+/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, 0...1 V, 0...10 V, 0...10 mV, 0...50 mV
Analog Output
Channels of analog input
2
Voltage range
+/-5 V, +/-10 V
Digital Input
Total channels of digital input
16
Level of Logic "0"
0~0.4 V
Level of Logic "1"
2~5 V
Number of channels
3
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
16
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-3710
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.21 kg
Gross Weight
0.53 kg
