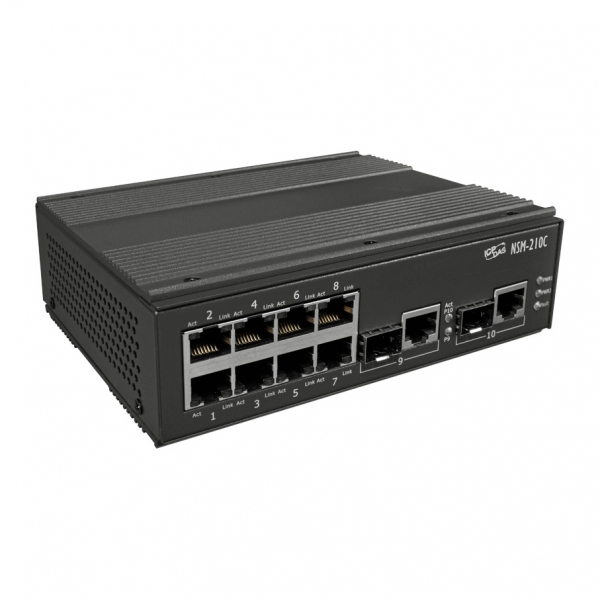

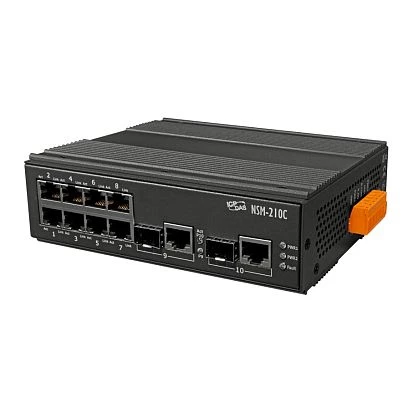

NSM-210C
ICP DAS
SKU: 08010200
8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
8000
Packet Buffer Size
1 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G

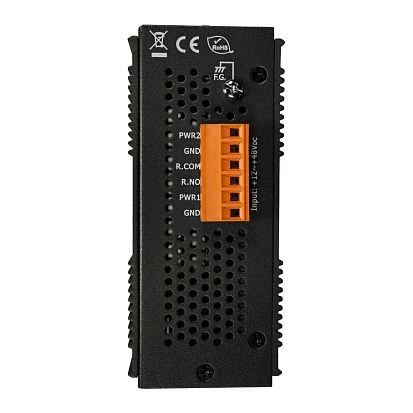

System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
51 mm
Depth
118 mm
Height
154 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.04 kg
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
8000
Packet Buffer Size
1 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
51 mm
Depth
118 mm
Height
154 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.04 kg
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
8000
Packet Buffer Size
1 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
51 mm
Depth
118 mm
Height
154 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.04 kg
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
8000
Packet Buffer Size
1 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
51 mm
Depth
118 mm
Height
154 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.04 kg
