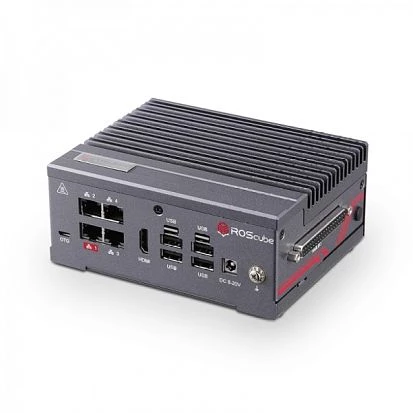

NPN-1
ADLink
SKU: 09466000
ROS 2.0-enabled robotic controller with ARM Cortex-A57 1.43GHz, NVIDIA Maxwell, 128 NVIDIA CUDA cores, 4GB LPDDR4, 16GB eMMC, HDMI 2.0, 4xGbE LAN, 4xUSB 3.1, 1xMicroUSB, M.2 E-key, M.2 B+M key, microSD, Audio, 8-20VDC-in
Price on request
Available
Available
CPU
Processor Installed
Nvidia Jetson Nano (4-Core)
Max CPU frequency
1.43 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Graphic
Graphic Controller
NVIDIA Maxwell with 128 NVIDIA CUDA-core
Ethernet
10/100/1000 Mbit/s
4
Interfaces
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
M.2
2
Connectors
Connectors
DB37 Female, 4xRJ45 Ethernet, 4xUSB, DC Input, 1xMini USB, Jack 3.5
System Power Input
Input Voltage DC
8 V
Power Consumption
90 W
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
140 mm
Height
63.3 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-20..50 °C
Shock
50G, 11ms
Standards and Certifications
Certifications
CE, FCC Class B
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
