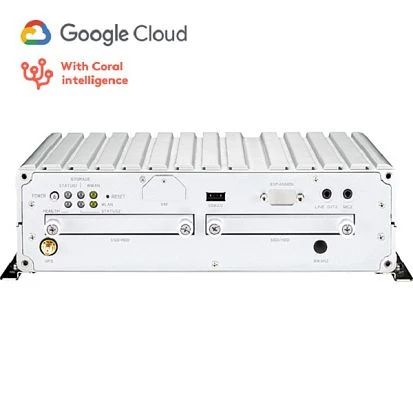

MVS-2623-GCIoT
NEXCOM
SKU: 56983000
Google Cloud AI Edge Telematics Server, Intel Atom E3950 2.0 GHz, 4GB DDR3L, 8x 10/100/1000 Mbps 802.3af PoE, 2x GbE, VGA/HDMI output, 2x RS232, 1x RS-232/422/485, 2x USB3.0, 1x USB2.0, 1x CAN, 9..36V DC-In
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Atom x7-E3950
Socket
CPU onboard
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Industrial Interfaces
CAN Port
1
Audio
Audio Controller
Intel HD Audio
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Mini-PCIe/Mini Card
3
SIM Card slots
3
Additional Functions
GPS
GPS
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, Mic In, Line Out, DC Input, 12V DC Output, GPIO (terminal block), 2xSIM Card Slot
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260 mm
Height
79.6 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-30..60 °C
Vibration
2g@5~500 Hz
Shock
20g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
2.1 kg
Gross Weight
4 kg
