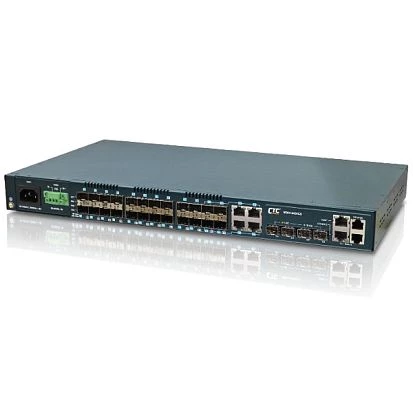

MSW-4424CS-AA
CTC Union
SKU: 56094800
Managed Gigabit L2 Carrier Ethernet Switch with 20x 100Base-FX/1000Base-X Ports, 4x GbE Combo ports and 4x 10G Base-X SFP Ports, Synchronous Ethernet, Redundant Dual 100-240VAC Input Power, 0..50C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
4
Type 10/100/1000 Mbit/s
4xCombo (RJ-45 or SFP)
SFP 100/1000 Mbit Ports
20
10 Gbit SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
Telnet, SNMP, NTP, SNTP, IGMPv1/v2/v3
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Redundant power input
Yes
Input Voltage AC
100..240 V
Power Supply Reserve input Voltage AC
100..240 V
Construction
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
437.5 mm
Depth
270.3 mm
Height
43.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
