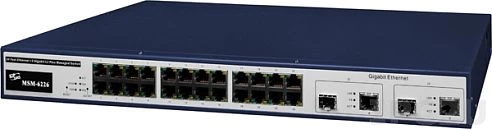

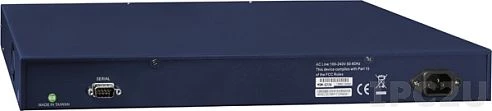

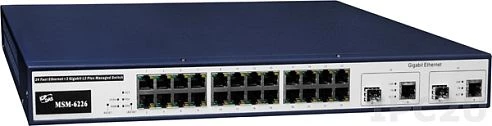

MSM-6226
ICP DAS
SKU: 05806600
24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media
End-of-life product
Ethernet
Total Ethernet
26
10/100 Mbit/s
24
Type 10/100 Mbit/s
24xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
MAC Table Size
8192
Packet Buffer Size
2048 kBit
Supported Protocols
Managment Protocols
SMTP, LLDP, Telnet, QoS, DHCP, SNMP, RMON, IGMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (DB9M)
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP20
Height
1 U
Dimensions and weight
Width
442 mm
Depth
209 mm
Height
44 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
