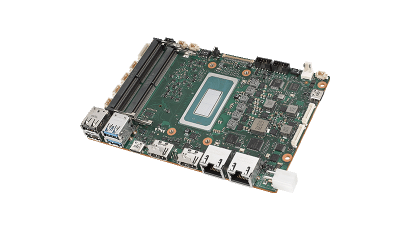

MIO-5379C5P-Q9A1
Advantech
SKU: 80162400
3.5" SBC, Intel 2nd Gen Core Ultra 5 225H CPU, Up to 96GB DDR5 RAM, 2xHDMI/eDP, 1x2.5GbE LAN, 1xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xUSB-C 4.0 DP/PD Alt., Headers (4xCOM, 2xUSB 2.0, 8-bit GPIO, 2xCAN), 4xM.2 (2xKey-M/Key-B/Key-E), 12-24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Arrow Lake
Processor Installed
Intel Core Ultra 5 225H
Socket
FCBGA2049
Max CPU frequency
4.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, eDP, Type C DP
Ethernet
Controller Type
Intel i210, Intel i226
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
2
USB v4
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
M.2
2
Extension Slots
Total
4
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, 10-pin Audio, GPIO, I2C
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, 2xUSB type C
Software
Operating System Compatibility
Linux OS, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.4 kg
Gross Weight
0.5 kg
