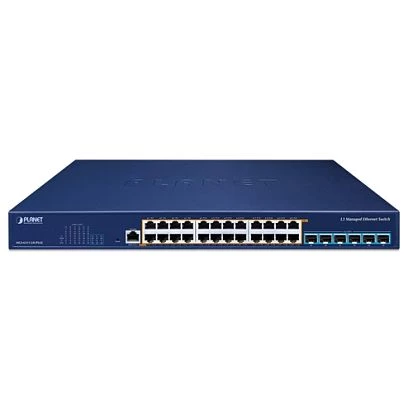

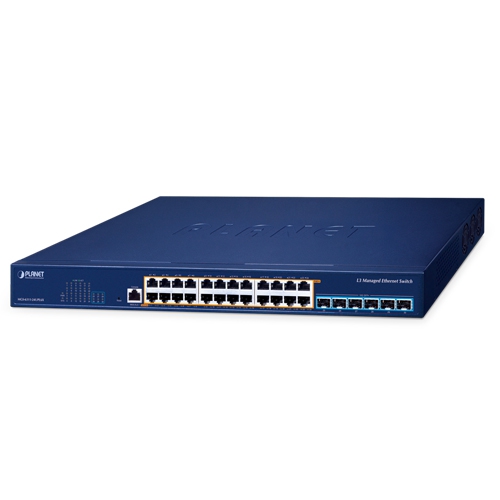

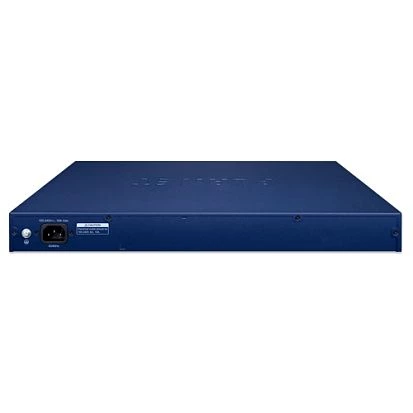

MGS-6311-24UPL6X

SKU: 80191500

Managed Ethernet Switch, 24x10/100/1000/2500Base-T with PoE++, 2-Port 10GBASE-T, 2-Port 10GBASE-SR/LR SFP+, MIPS 1GHz CPU, RAM up to 512Mbytes, Flash Memory 32Mbytes, 1xCOM, 100..240VAC, Operating Temperature 0..50C

Price on request

Ethernet

Total Ethernet

2,5 Gbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

VRRP, Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

SNMPv1/v2c/v3, Syslog, Telnet, NTP, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, DHCP Option 66/67/82, FTP

Reservation protocols

ERPS

Security Protocols

RADIUS, TACACS+, SSH2

IEEE Standard

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bz for 5GBaseT and 2.5GBaseT

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

440 mm

Depth

330 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

5.07 kg

Gross Weight

5.5 kg

Ethernet

Total Ethernet

2,5 Gbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

VRRP, Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

SNMPv1/v2c/v3, Syslog, Telnet, NTP, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, DHCP Option 66/67/82, FTP

Reservation protocols

ERPS

Security Protocols

RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

440 mm

Depth

330 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

5.07 kg

Gross Weight

5.5 kg

Ethernet

Total Ethernet

2,5 Gbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

VRRP, Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

SNMPv1/v2c/v3, Syslog, Telnet, NTP, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, DHCP Option 66/67/82, FTP

Reservation protocols

ERPS

Security Protocols

RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

440 mm

Depth

330 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

5.07 kg

Gross Weight

5.5 kg

Ethernet

Total Ethernet

2,5 Gbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Protocol Layer 3

VRRP, Static Routing, RIP V1/V2, OSPF, BGP

Managment Protocols

SNMPv1/v2c/v3, Syslog, Telnet, NTP, TFTP, LACP, CoS, TCP, IGMPv1/v2/v3, DHCP Option 66/67/82, FTP

Reservation protocols

ERPS

Security Protocols

RADIUS, TACACS+, SSH2

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

440 mm

Depth

330 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-90%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

5.07 kg

Gross Weight

5.5 kg
