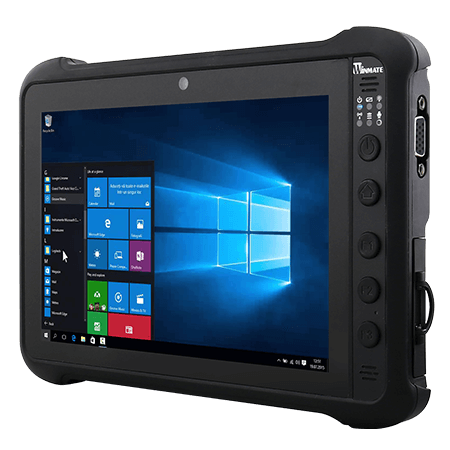

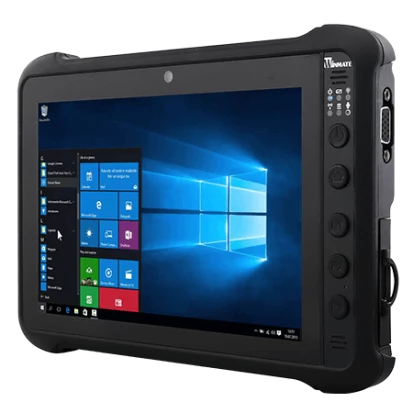

M900EK
Winmate
SKU: 57903600
8" Rugged Tablet PC, IP65, 1280x800, 800cd/m2, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB LPDDR4 RAM, 128GB M.2 SSD, 2xUSB 3.0 Type-A/C, 1xDB15, MicroSD, Smart Card, SIM, Wi-Fi/BT/GPS, 8MP/2MP Cam, Win 10 IoT, 4200mAh Bat, 19VDC-in, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
1500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Pentium N4200
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
RFID Reader
Optional
Smart Card Reader
Optional
Sensors
Light Sensor, G-sensor, Gyro
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
2xUSB, Audio (in/out/Mic), DB15 GPIO, MicroSD card slot, Micro-SIM card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
4200 mA*h
RunTime Battery 1
6 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
225 mm
Height
148 mm
Depth
20.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8, 5 ft
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
0.9 kg
Gross Weight
1.4 kg
