M133TGML(HB)

Winmate
SKU: 57905800

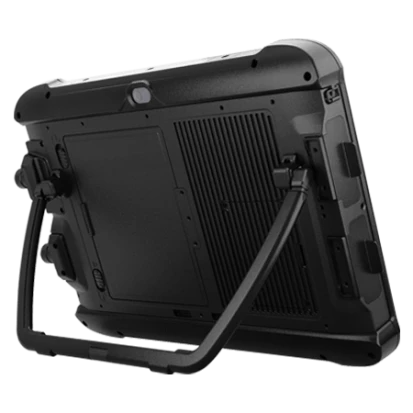

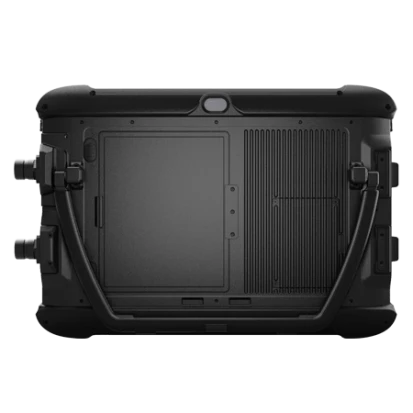

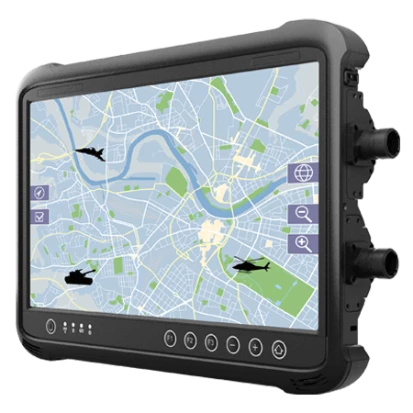

13.3" Rugged Defence Tablet, MIL-STD, IP65, PCAP Touch, 1920x1080, 500cd/m2 w/ Optical Bond, Intel Core i5-1135G7 CPU, 4GB DDR4 RAM, 128GB M.2 SSD, HDMI Opt., 1xGbE LAN, 4xUSB, 1xUSB Type-C, 1xCOM, WiFi/BT/GPS, 5900mAh Battery, 24VDC-in, Win10 IoT
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber, Magnesium Alloy
Protection Level of Chassis
IP65
Display
Display Type
LCD IPS
Diagonal
13.3 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
CPU onboard
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
M.2
2
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
Additional Functions
Rear Camera
8 MP
GPS
GPS, GLONASS
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
DB9, RJ45, 4xUSB, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5900 mA*h
RunTime Battery 1
10 h
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
338.2 mm
Height
47.3 mm
Depth
239.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
30-90%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Shock
MIL-STD-810G Method 516.6 Procedure I, 4 ft
Temperature (Storage)
-20~+60
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810F Test Method 516.5 Crash Hazard, MIL-STD-810F Test Method 507.4 Humidity
Dimensions
Net Weight
2.4 kg
Gross Weight
3.4 kg
