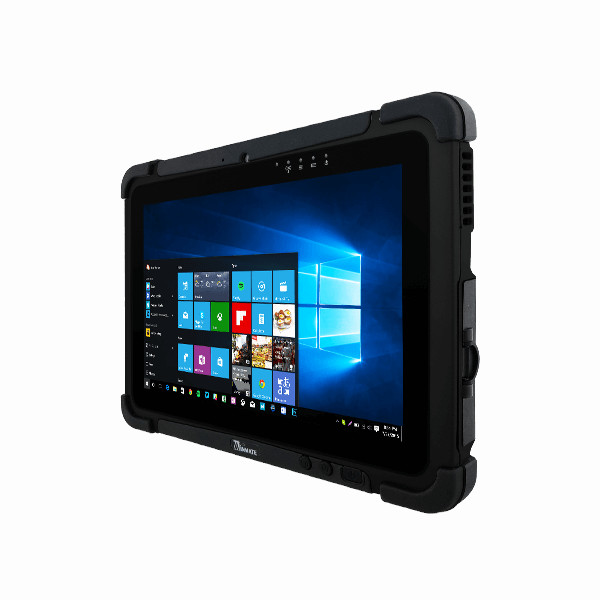

M101S-EX

SKU: 57618100

10.1" Rugged ATEX Tablet PC, 1920x1200, P-Cap Touch, Intel 7th Gen Core i5-7200U 2.5GHz CPU, 8GB DDR4 SDRAM, 256GB SSD, 2xUSB 3.0 Type-A/Type-C, Wi-Fi, BT, GPS, SIM, Audio, 1xMicro SDXC, TPM 2.0, 19VDC-in, Battery 7.4V 5140mAh, Win 10 IoT, -20..60C

Price on request

Construction

Construction Chassis

Rubber

Protection Level of Chassis

IP65

Type

Fanless

Display

Display Type

LCD IPS

Diagonal

10.1 "

Aspect Ratio

16:10

Brightness

800 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Capacitive

CPU

СPU Generation/Family

Kaby Lake

Processor Installed

Intel Core i5-7200U

Chipset

Intel Kaby Lake SoC

Memory

Socket Type

Soldered

ECC

Default on Board Memory

8 GB

Maximum Memory

16 GB

Assembly

Fixed on Board

Graphic

Graphic Controller

Integrated in CPU, Intel UHD Graphics 620

Interfaces

Micro HDMI

Wi-Fi

Wi-Fi Standard

Yes

Interfaces

USB Total

Additional Functions

Camera Frontside

2 MP

Rear Camera

8 MP

LED / Controls

LED

Battеry Status, Power LED, SSD LED

Controls

On/Off, Function Keys, Volume Keys

Connectors

1xUSB, MicroSD card slot, Micro-SIM card slot, USB type C

Power Supply

Type of Power Supply

External power adapter AC/DC

Battery

Battery 1 Technology

Li-pol

Battery Capacity

5140 mA*h

RunTime Battery 1

8 h

Battery 1 Hotswap

Yes

Software

Operating System Installed

Windows IoT Enterprise 10

Dimensions and weight

Width

271.8 mm

Height

197.2 mm

Depth

21 mm

Standards and Certifications

Certifications

CE, FCC

Explosion safety

IECEx, ATEX Zone 2 Group II, UL/cUL Class I Division 2

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Dimensions

Net Weight

1.25 kg

Gross Weight

2 kg
