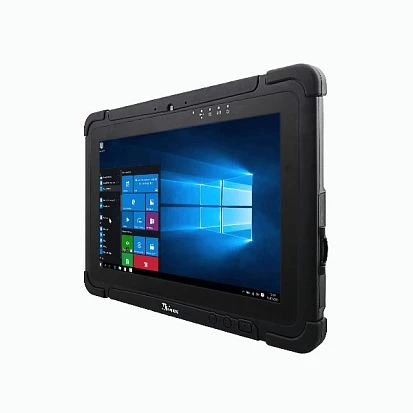

M101PR

M101PR

Winmate
SKU: 57618600
10.1" Rugged LED Tablet PC, 1920x1200, P-Cap Touch, Intel Pentium N4200 1.1GHz CPU, 4GB LPDDR4 RAM, 128GB SSD, 2xUSB 3.0 Type-A + Type-C, Wi-Fi, BT, GPS, SIM, Audio, 1xMicro SDXC, TPM 2.0, 19VDC-in, Battery 7.7V 5900mAh, Win 10 IoT, -20..60C
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
10.1 "
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 505
Interfaces
Micro HDMI
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
LED / Controls
LED
Battеry Status, Power LED, SSD LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, MicroSD card slot, Micro-SIM card slot, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5900 mA*h
RunTime Battery 1
9 h
Battery 1 Hotswap
Yes
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
271.9 mm
Height
197.3 mm
Depth
19.5 mm
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.2 kg
Gross Weight
1.95 kg
