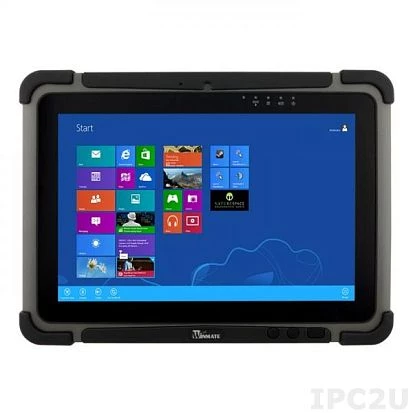

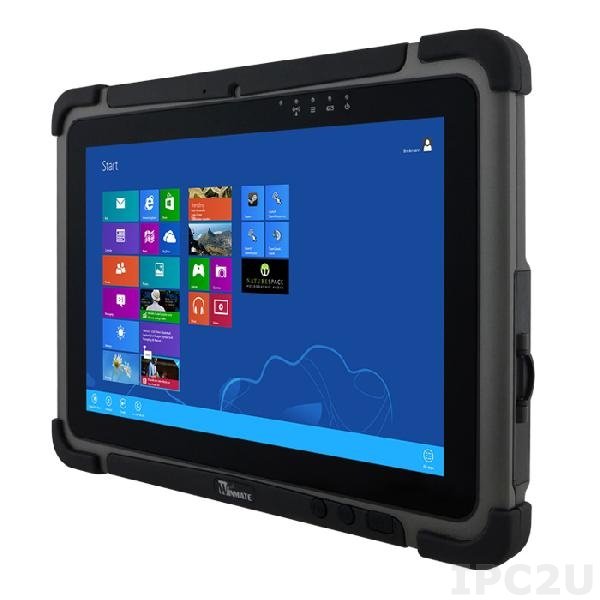

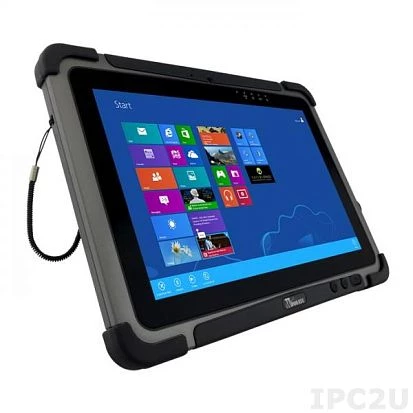

M101BL

M101BL

Winmate
SKU: 06889600
10.1" IP65 Rugged LED Tablet PC, P-CAP Touch, 350 nits,1280x800, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L-1600, 64GB mSATA SSD, Wi-Fi, Bluetooth, GPS, Audio, 5MP/2MP Cam, W10 IoT, Battery 7.4V, 5140MAh-Li-Poly
Price on request
Available
Available

Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
USB Total
1
USB v3.x
1
Drive interfaces
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
GPS
GPS
Barcode Scanner
Optional
Smart Card Reader
Optional
Sensors
Light Sensor, G-sensor, Gyroscope, E-compass
Antenna characteristics
Cellular interfaces
3G, 4G
Bluetooth
v4.0
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, SD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
12..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5300 mA*h
RunTime Battery 1
0 h
Additional Battery Type
Li‑pol
Additional Battery Capacity
10600 mA*h
RunTime Battery 2
0 h
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional
Operating System Installed
Windows Embedded 8.1
Dimensions and weight
Width
271.8 mm
Height
197.2 mm
Depth
19 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL
Dimensions
Net Weight
0.9 kg
Gross Weight
1.2 kg
