M-7046D

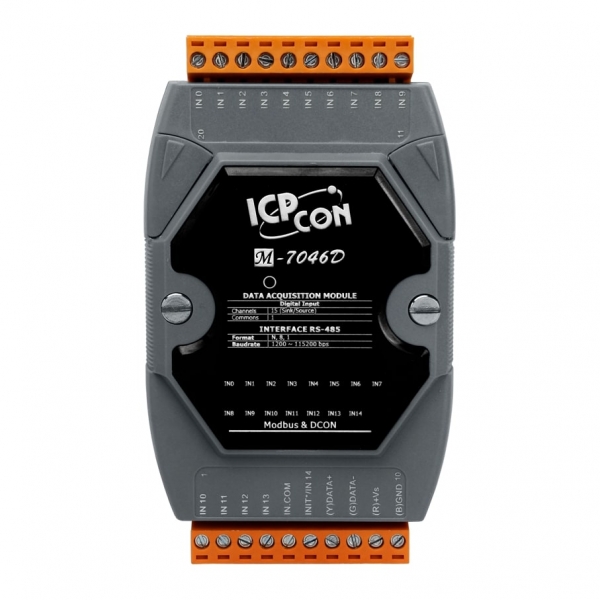

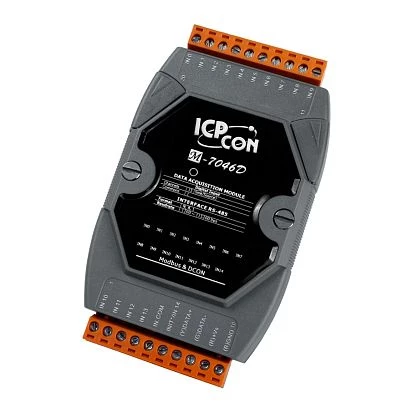

M-7046D

ICP DAS
SKU: 07862900
15-channel Isolated Digital Input Module using the DCON or Modbus Protocol (Gray Cover) (RoHS), LED Display
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Display
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
15
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~50 V
Sink/Source
Wet: Sink/Source
Isolation of Digital Input
5000 V
Counter
100Hz, 16 bit
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
