LP-5231PM-3GWA

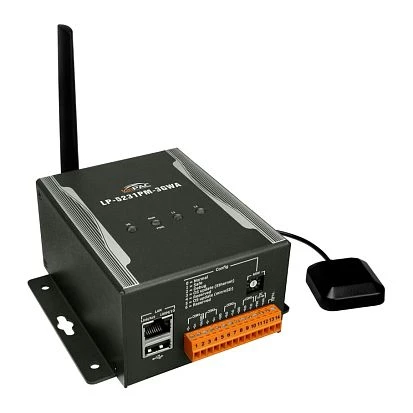

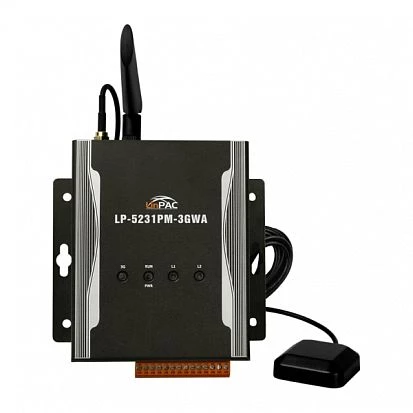

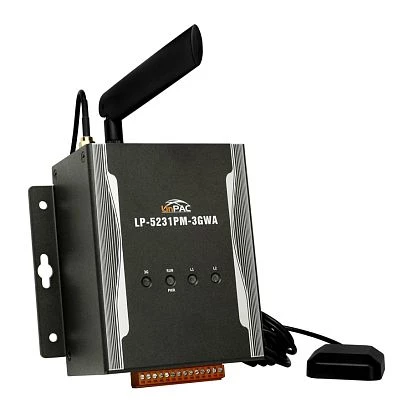

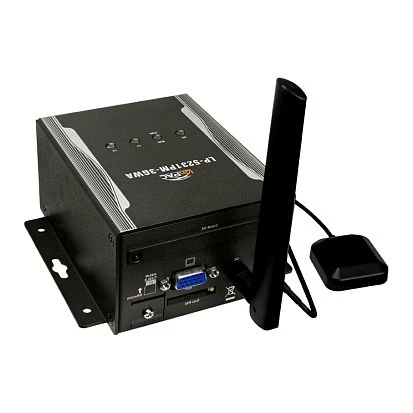

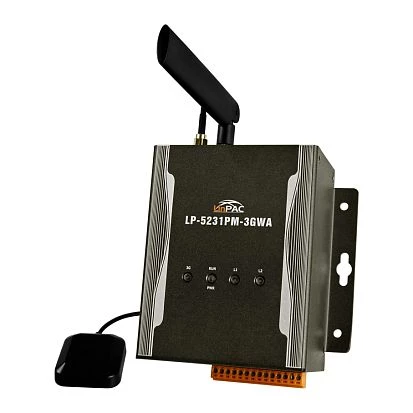

LP-5231PM-3GWA

ICP DAS
SKU: 07354900
PC-compatible Cortex-A8 1GHz Industrial Controller, 512Mb Flash, 512Mb DDR3 SRAM, VGA, 2xRS-232, 2xRS-485, 1xUSB, 1xEthernet, Linux 3.2.14, with 1 Expansion Slot, GSM 850/900/1800/1900 MHz, GPRS class 12/10, 3G WCDMA 850/900/1900/2100 MHz
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Antenna characteristics
Cellular interfaces
2G, 3G
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
Screw Terminal
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
126 mm
Height
58 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.46 kg
