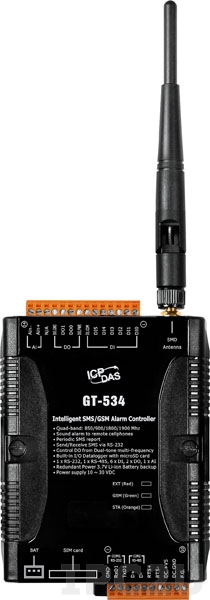

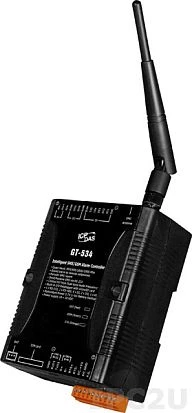

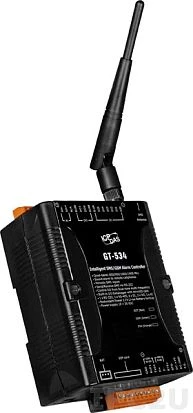

GT-534
ICP DAS
SKU: 05588200
Intelligent SMS/GSM Alarm Controller (RoHS, include: 2G micro SD card)
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
32-bit RISC
Analog Input
Total channels of analog input
1
Number of Bits
12 Bit
Current range
0...20 mA
Digital Input
Total channels of digital input
6
Isolation of Digital Input
3000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Digital Output
Total channels of digital output
2
Type
Open collector
Max. load current
100 mA
Output voltage
0~30 V
Interfaces
COM Total
2
RS-232
1
RS-485
1
Antenna characteristics
Cellular interfaces
2G
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
