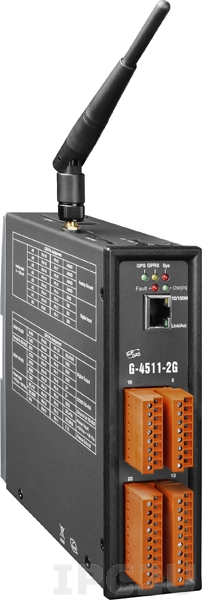

G-4511-2G
ICP DAS
SKU: 66343800
2G GSM Power Saving PAC with Solar charger (RoHS)
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Drive interfaces
MicroSD
1
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Analog Input
Total channels of analog input
8
Number of Bits
12 Bit
Current range
0...20 mA
Digital Input
Total channels of digital input
3
Type
Dry contact, Wet contact
Sink/Source
Source
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Max. load current
100 mA
Output voltage
1~30 V
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-485
1
Antenna characteristics
Cellular interfaces
2G
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
47 mm
Depth
142 mm
Height
168 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
