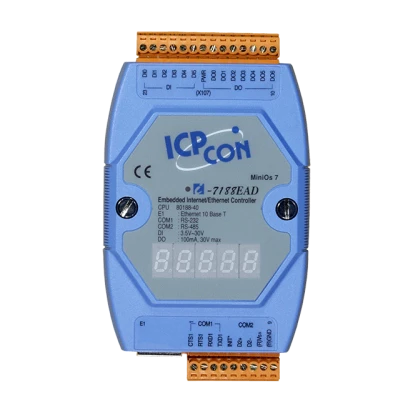

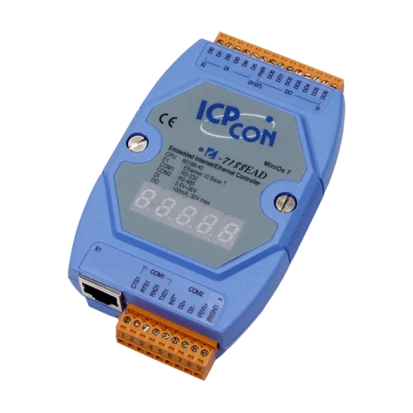

I-7188EAD
ICP DAS
SKU: 01546800
PC-compatible 40MHz Industrial Controller, 512kb Flash, 512kb SRAM, Ethernet, 1xRS232, 1xRS485, 6DI&7DO, 7-Segment Display, cable CA-0910x1
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis

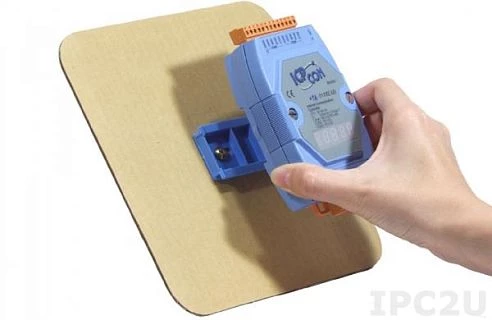

Mounting Configuration
DIN-Rail mount
Display
Display Type
LED Character
CPU
Processor Installed
80188
Max CPU frequency
0.04 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Digital Input
Total channels of digital input
6
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Digital Output
Total channels of digital output
7
Type
Open collector
Max. load current
100 mA
Output voltage
1~30 V
Interfaces
COM Total
2
RS-232
1
RS-485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
72 mm
Depth
119 mm
Height
33 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
