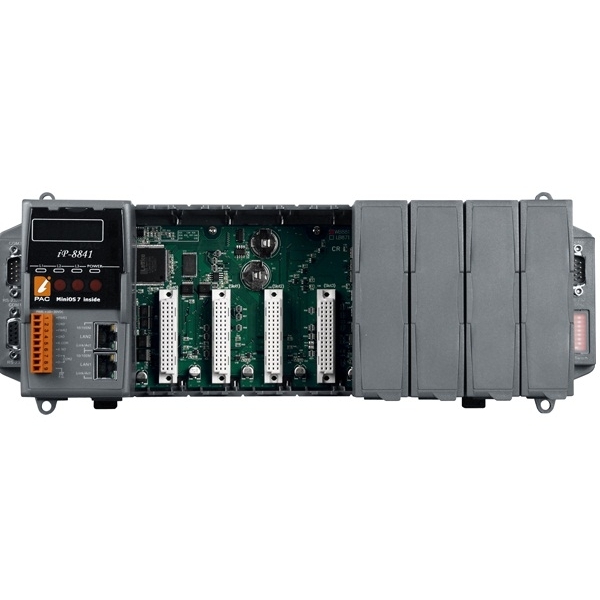

iP-8841-FD
ICP DAS
SKU: 06760800
PC-compatible 80MHz Industrial Controller, 512kb Flash, 768kb SRAM, 64 MB NAND Flash disk, 2xLAN, 2xRS232, 1xRS485, 1xRS232/485, 7-Segment Display, Mini OS7, 8 Expansion Slots
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Memory
SRAM
768 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Built-in NAND Flash Capacity
64 MB
Drive interfaces
MicroSD
1
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
111 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.2 kg
