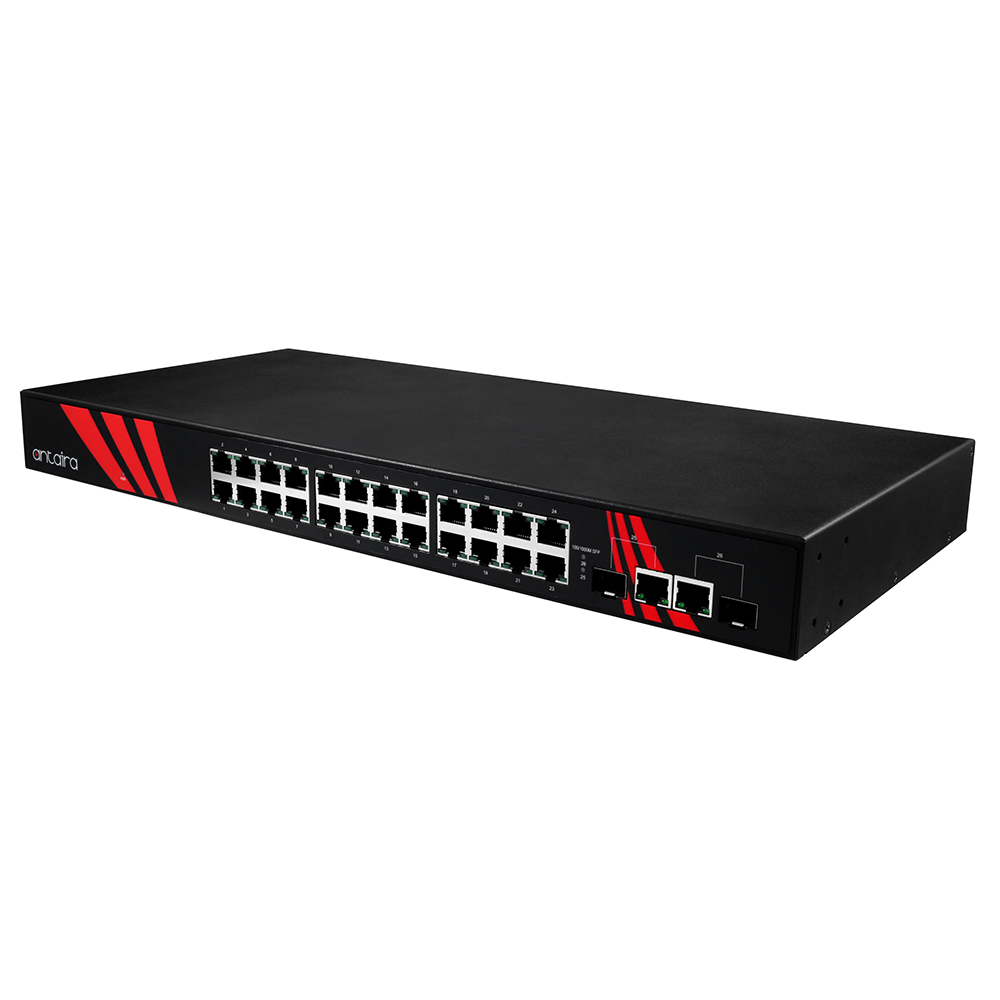

LNX-2602G-SFP-T

LNX-2602G-SFP-T

Antaira Technologies
SKU: 80214800
Industrial Unmanaged Ethernet Switch, IP40, 24x10/100/1000Base-TX, 2x100/1000 Combo Ports, 90.264 VAC, Operating Temperature -40...75 C
Price on request
Available
Available

Ethernet
Total Ethernet
26
10/100/1000 Mbit/s
26
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
90..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Height
1 U
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
200 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.72 kg
Gross Weight
3.63 kg
