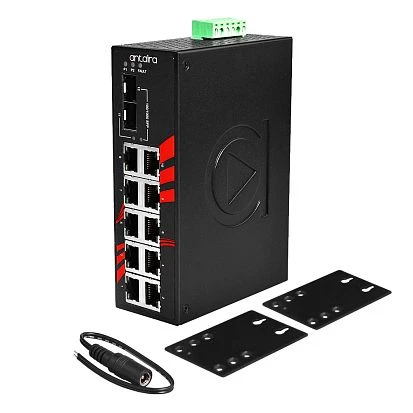

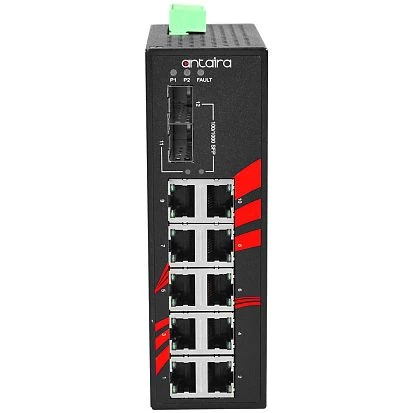

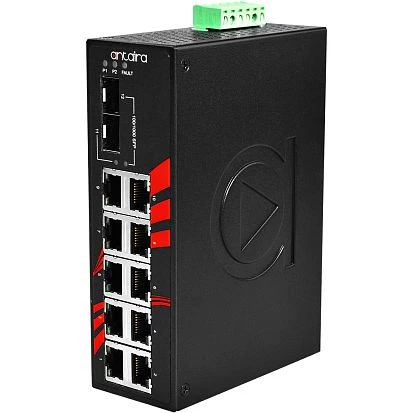

LNX-1202G-SFP-T
Antaira Technologies
SKU: 80176800
Industrial Unmanaged Ethernet Switch, IP30, 10x10/100/1000Base-TX, 2x100/1000 SFP, 12..48VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
10
SFP 100/1000 Mbit Ports
2
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

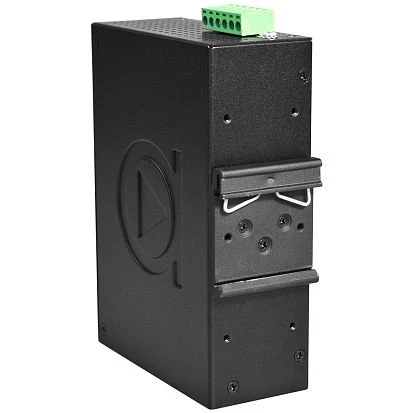

DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
99 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.4 kg
Gross Weight
1.6 kg
