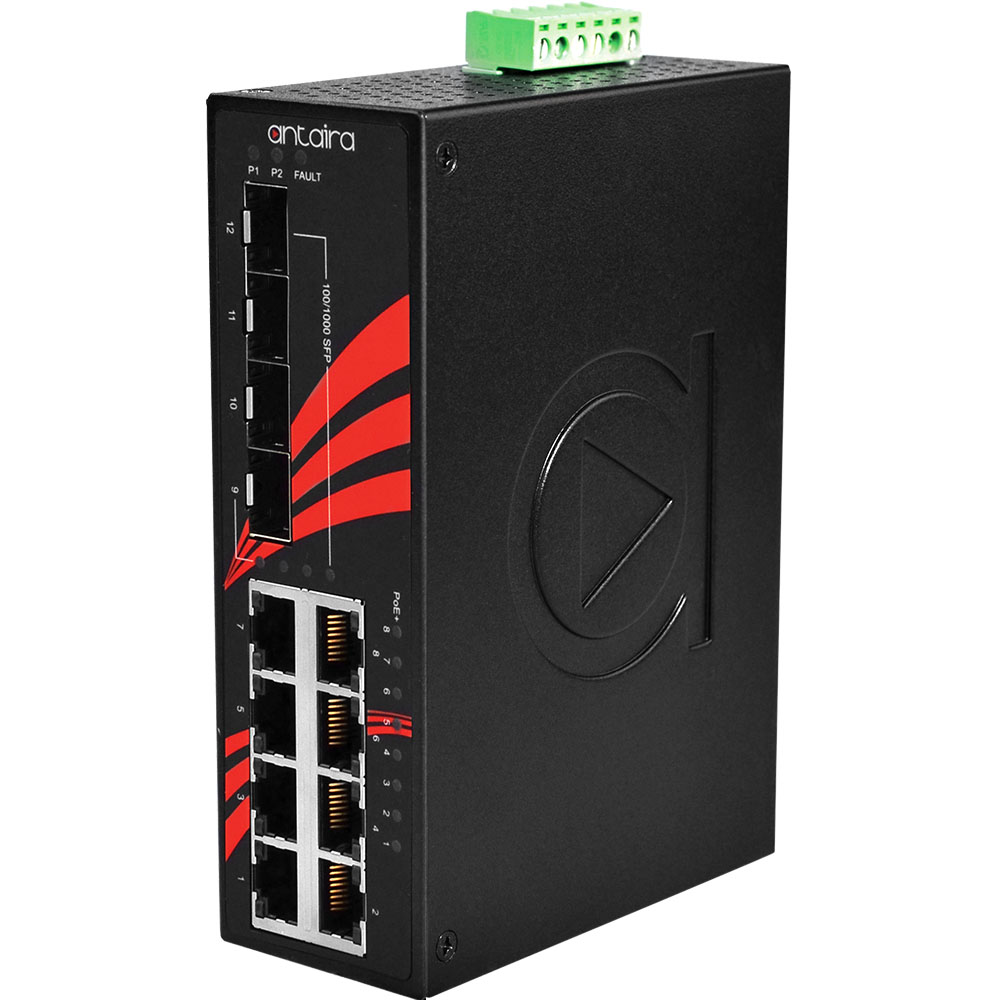

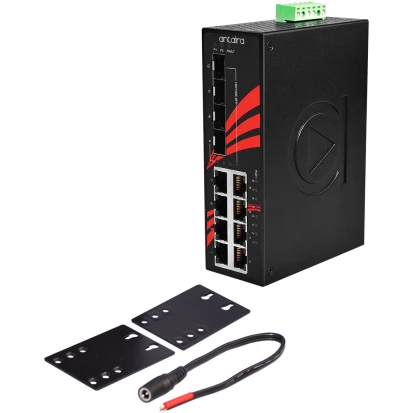

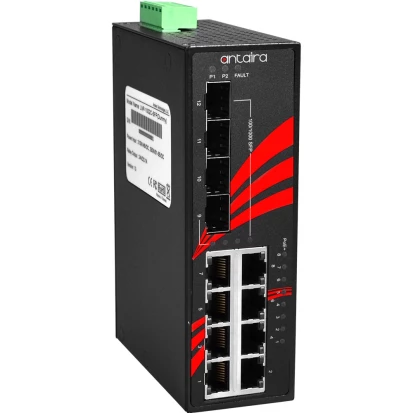

LNP-1204G-SFP
Antaira Technologies
SKU: 80251200
Industrial Unmanaged PoE+ Ethernet Switch, IP30, 8x10/100/1000Base-TX with PoE+, 4x100/1000 SFP, 48..55 VDC, Operating Temperature -10..70 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.81 kg
Gross Weight
1 kg
