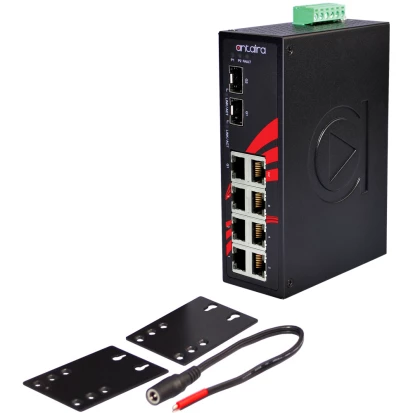

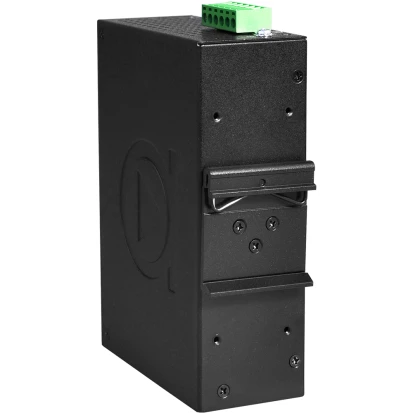

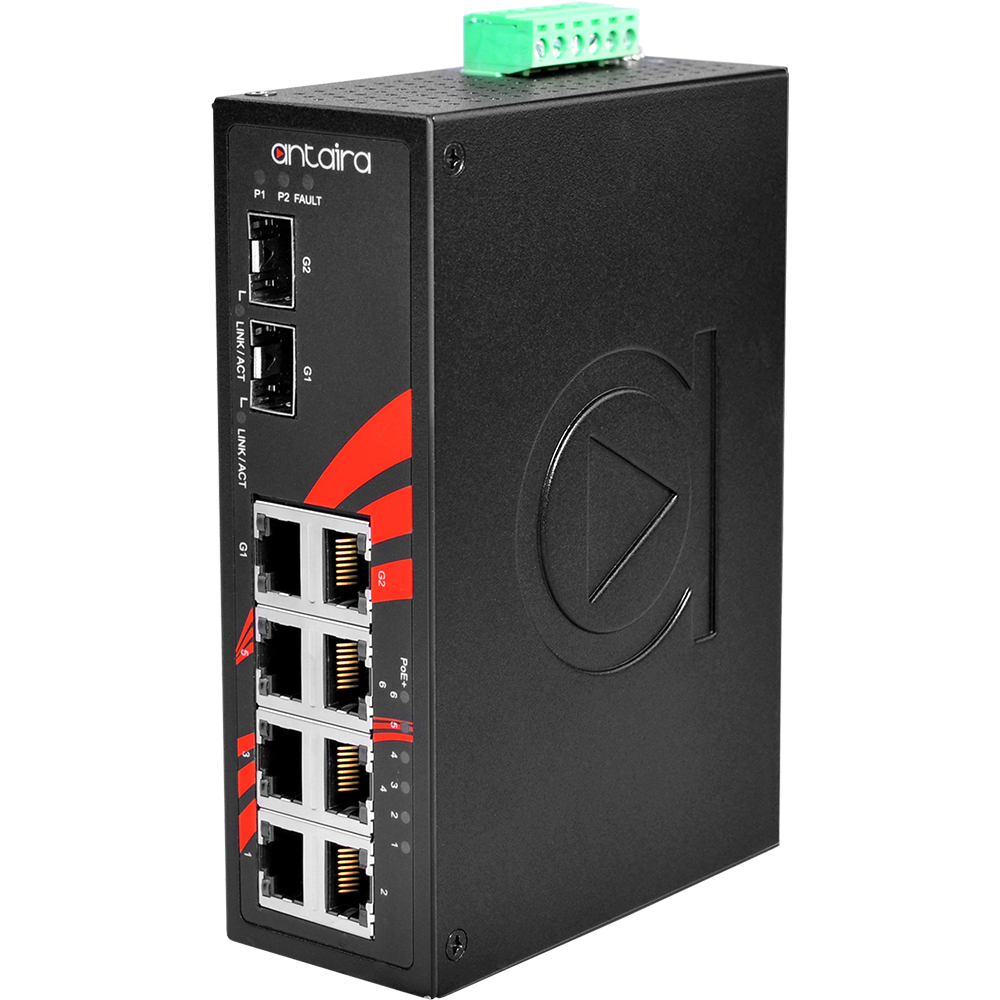

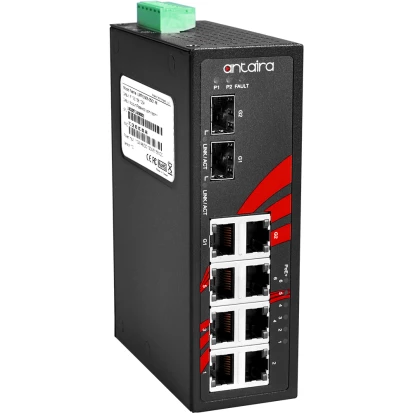

LNP-0802C-SFP
Antaira Technologies
SKU: 80205000
Industrial PoE+ Unmanaged Ethernet Switch, IP30, 6x10/100Base-TX with PoE+, 2xCombo ports, 48..55VDC, Operating Temperature -10..70 C
Price on request
Available
Available
Ethernet
10/100 Mbit/s
6
SFP 100/1000 Mbit Ports
2
PoE/PoE+ 10/100 Mbit/s
6
Switch Properties
MAC Table Size
8000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
