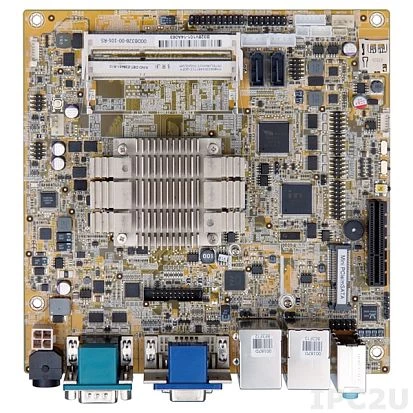

Mini-ITX SBC supports Intel Celeron Dual-Core Processor N2807 1.58GHz, VGA, DVI-D, iDP, 5xCOM, 6xUSB 2.0, 2xUSB 3.0, 2xGbE LAN, 2xSATA 2, TPM, SMBus, HD Audio, RoHS
KINO-DBT-N28071
IEI
SKU: 06798800
Price on request
Available on order
Available on order
System Architecture
Form Factor
Mini-ITX
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/485
1
USB Total
8
USB 2.0
6
USB v3.x
2
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
2
PCI Express x4
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 2, TPM, 4-pin SMBus, 1x4-pin RS-422/485, 3x10-pin RS-232, 4x4-pin USB 2.0, iDP, 6-pin KB/MS, 4-pin ATX
Connectors
2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
