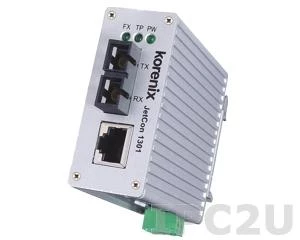

JetCon 1301-m-48V

JetCon 1301-m-48V

KORENIX
SKU: 55215900
Korenix Industrial Compact 10/100Base-TX to 100-FX Media Converter, 36-60 VDC Input, Multi Mode (2km), SC Fiber Connector, -10~+70C
Price on request
Available on order
Available on order
Ethernet
10/100 Mbit/s
2
Type 10/100 Mbit/s
1xSC, 1xRJ-45
Typical Distance
2 km
Fiber
Type of Fibre Optic
multi-mode
Length Wave RX/TX
1310 nm
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, 10/100M LED
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IPX1
Dimensions and weight
Width
30 mm
Depth
80 mm
Height
70 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.7 kg
