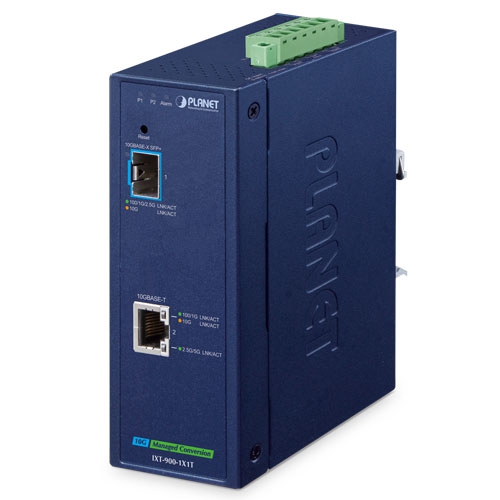

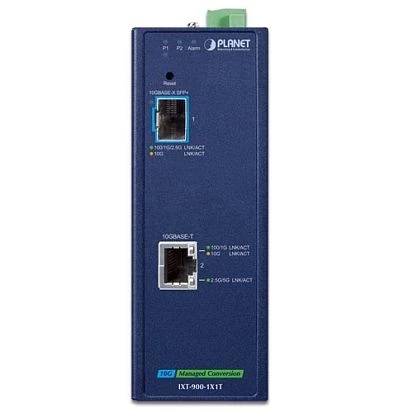

IXT-900-1X1T
Planet
SKU: 57826600
Industrial Managed Media Converter IP40, 1-Port 10G/5G/2.5G/1G/100BASE-T, 1-Port 10G/2.5G/1G/100BASE-X, 9..48 VDC, Operating Temperature -40..75 C
235,37 €
Price excl. VAT and shipping cost
Available
Available
Ethernet
Total Ethernet
1
10 Gbit/s
1
10 Gbit/s SFP+ Ports
1
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, SNMP Trap
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bz for 2.5GBaseX
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9 kB
LED / Controls
LED
Power LED, LNK/ACT LED
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
50 mm
Depth
87 mm
Height
135 mm
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.58 kg
Gross Weight
1 kg
