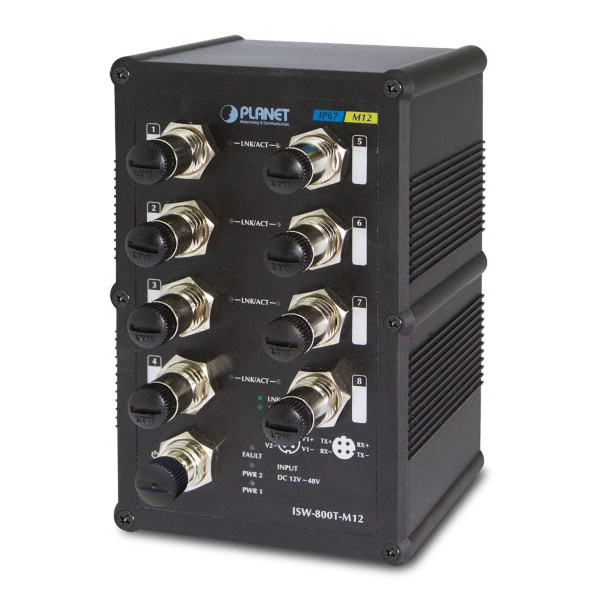

ISW-800T-M12
Planet
SKU: 56820000
Industrial IP67 DIN-Rail Unmanaged Switch with 8x100 Mbps ports, redundant 12-48VDC Power Input, -40...+75C operating temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
53 mm
Depth
103 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.98 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
53 mm
Depth
103 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.98 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
53 mm
Depth
103 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.98 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
53 mm
Depth
103 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.98 kg
Gross Weight
1.5 kg
