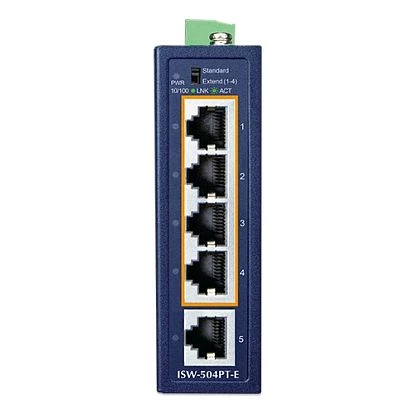

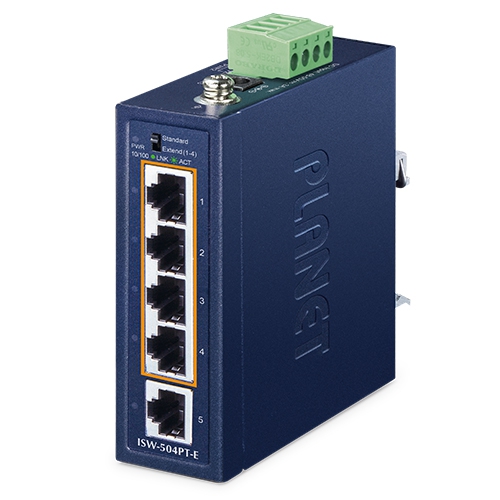

ISW-504PT-E
Planet
SKU: 80152900
Compact Industrial Ethernet Switch, IP40, 5x10/100Base-TX RJ45 with PoE, 48..55 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input

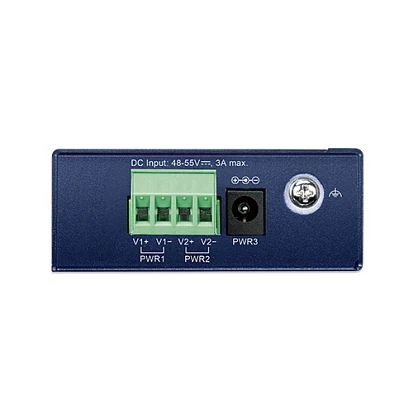

Input Voltage DC
48..55 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
30.2 mm
Depth
76.1 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.27 kg
Gross Weight
0.7 kg
