ISO-P32C32
ICP DAS
SKU: 01007400

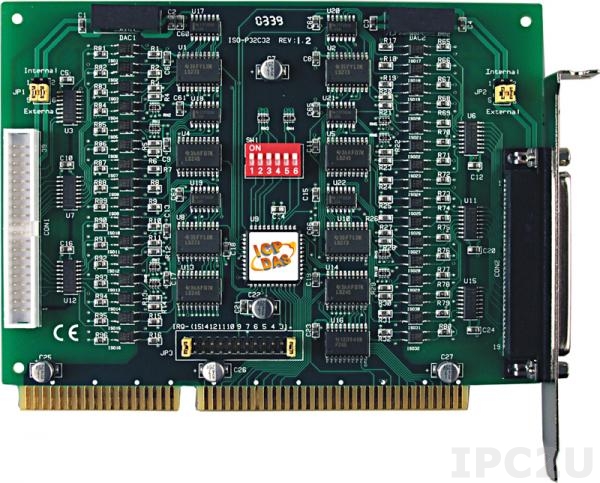

ISA Isolated 32DI & 32DO Board, Adapter CA-4037x1, Cable Socket CA-4002x2
Price on request
Available
Available
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3750 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
9~24 V
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
100 mA
Connectors
Connectors
DB37 Female
Cables
Included Cables
CA-4037W
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.41 kg
