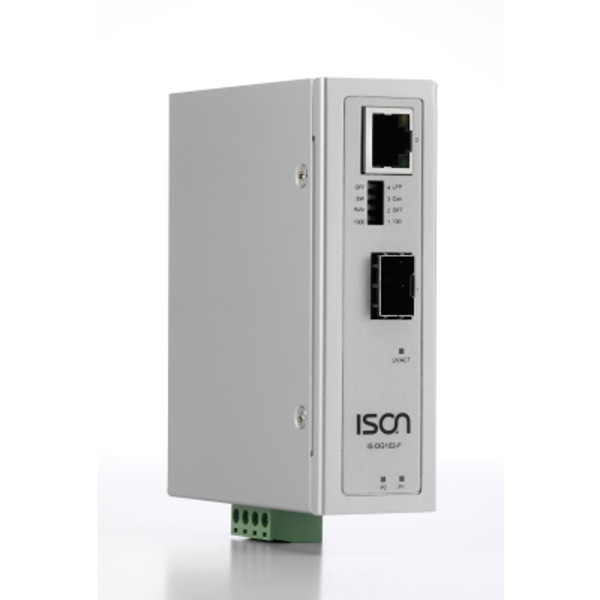

IS-DG102-F
ISON
SKU: 56295300
Rugged 2-port Industrial Media Converter with 1x 100/1000Base-TX Port, 1x 100/1000Base-FX SFP Slot, 9...56V DC-In, 18...36V AC-In, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, 10/100/1000M LED
System Power Input
Input Voltage DC
12..58 V
Input Voltage AC
18..36 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
81.5 mm
Height
103.5 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, 10/100/1000M LED
System Power Input
Input Voltage DC
12..58 V
Input Voltage AC
18..36 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
81.5 mm
Height
103.5 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, 10/100/1000M LED
System Power Input
Input Voltage DC
12..58 V
Input Voltage AC
18..36 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
81.5 mm
Height
103.5 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, 10/100/1000M LED
System Power Input
Input Voltage DC
12..58 V
Input Voltage AC
18..36 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
81.5 mm
Height
103.5 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
