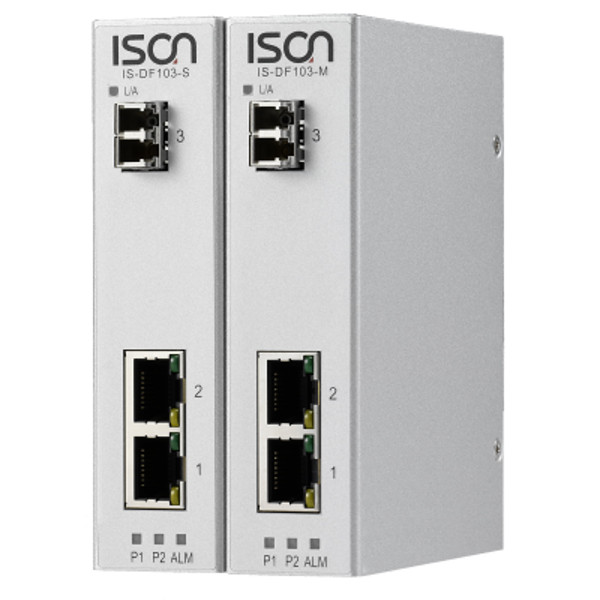

IS-DF103-M
ISON
SKU: 56404900
Rugged Industrial 3-port 100Base-TX Media Converter with 1 Multi-Mode 2km 100Base-FX Fixed SFP port, LC connector, 2x 100Base-TX port, 12...58V DC-In, -40...+75C Wide Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
3
10/100 Mbit/s
2
SFP Fast Ethernet 100 Mbit/s
1
Typical Distance
2 km
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED
System Power Input
Input Voltage DC
12..58 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89 mm
Height
109 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
3
10/100 Mbit/s
2
SFP Fast Ethernet 100 Mbit/s
1
Typical Distance
