IQ7-US15W-Z530-R10

IQ7-US15W-Z530-R10

IEI
SKU: 06389600

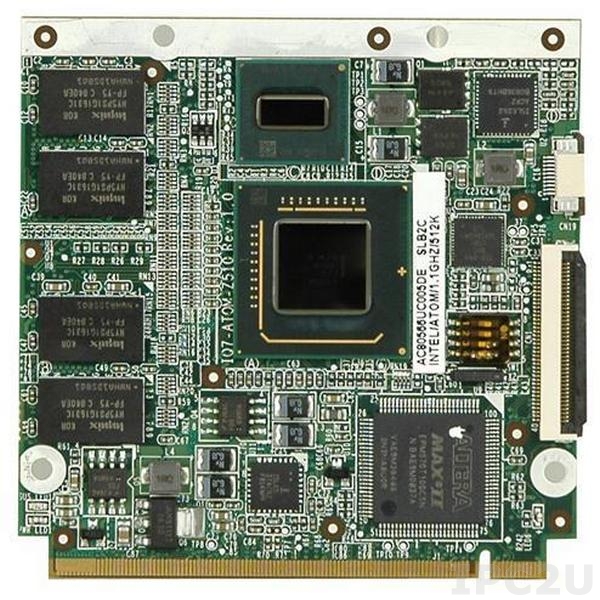

Q7 CPU Module with Intel Atom Z530 1.6GHz, SDVO/LVDS, 1GB DDR2 SDRAM, USB, SD, IDE, RoHS
End-of-life product

System Architecture
Form Factor
Q7 CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom Z530
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel US15W
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel GMA 500
Interfaces
LVDS
Interfaces
USB Total
8
USB 2.0
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
2
PCI Express x1
2
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
System Architecture
Form Factor
Q7 CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom Z530
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel US15W
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel GMA 500
Interfaces
LVDS
Interfaces
USB Total
8
USB 2.0
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
2
PCI Express x1
2
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
