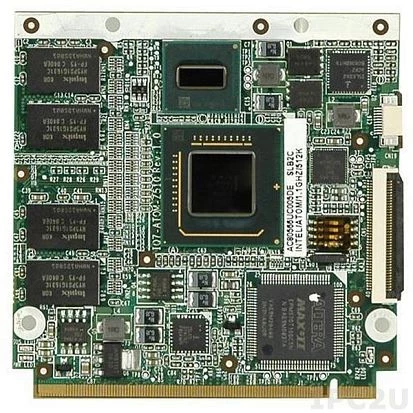

IQ7-US15W-Z510-R10

IQ7-US15W-Z510-R10

IEI
SKU: 06389700
Q7 CPU Module with Intel Atom Z510 1.1GHz, 1GB DDR2 SDRAM on board, SDVO/LVDS, SD, USB, IDE, RoHS
End-of-life product

System Architecture
Form Factor
Q7 CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom Z510
Max CPU frequency
1.1 GHz
Chipset
Chipset
Intel US15W
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel GMA 500
Interfaces
LVDS
Interfaces
USB Total
8
USB 2.0
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
2
PCI Express x1
2
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg

Request for replacement

IEI
SKU: 06389700
IQ7-US15W-Z510-R10
