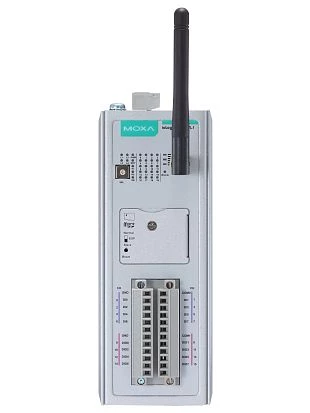

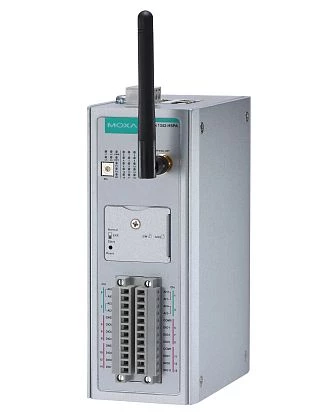

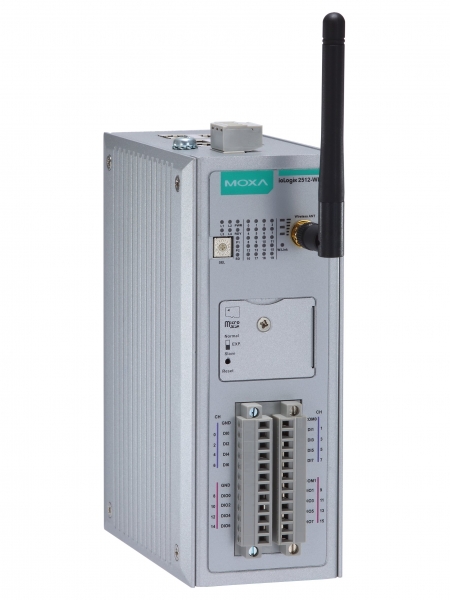

ioLogik 2512-WL1-EU-T
MOXA
SKU: 06938700
WLAN remote I/O with Glick&Go Plus, 2xRS-232/422/485, 8xDIs, 8xDI/Os, -30..70 C operating temperature
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Drive interfaces
MicroSD
1
Software
Programming Method
IF-THEN-ELSE Logic Rules
Development Software
Click&Go Plus
Digital Input
Total channels of digital input
8
Isolation of Digital Input
3000 V
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Counter
2.5KHz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output frequency range
0~5 kHz
Ethernet
10/100 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g
Quantity of Wi-Fi
1
Additional Functions
Watchdog timer type
Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU slave
Dimensions and weight
Width
61 mm
Depth
115 mm
Height
166 mm
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-30..70 °C
Standards and Certifications
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2
Freefall
IEC 60068-2-32
Safety
UL 508, EN 60950-1, NCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.6 kg
